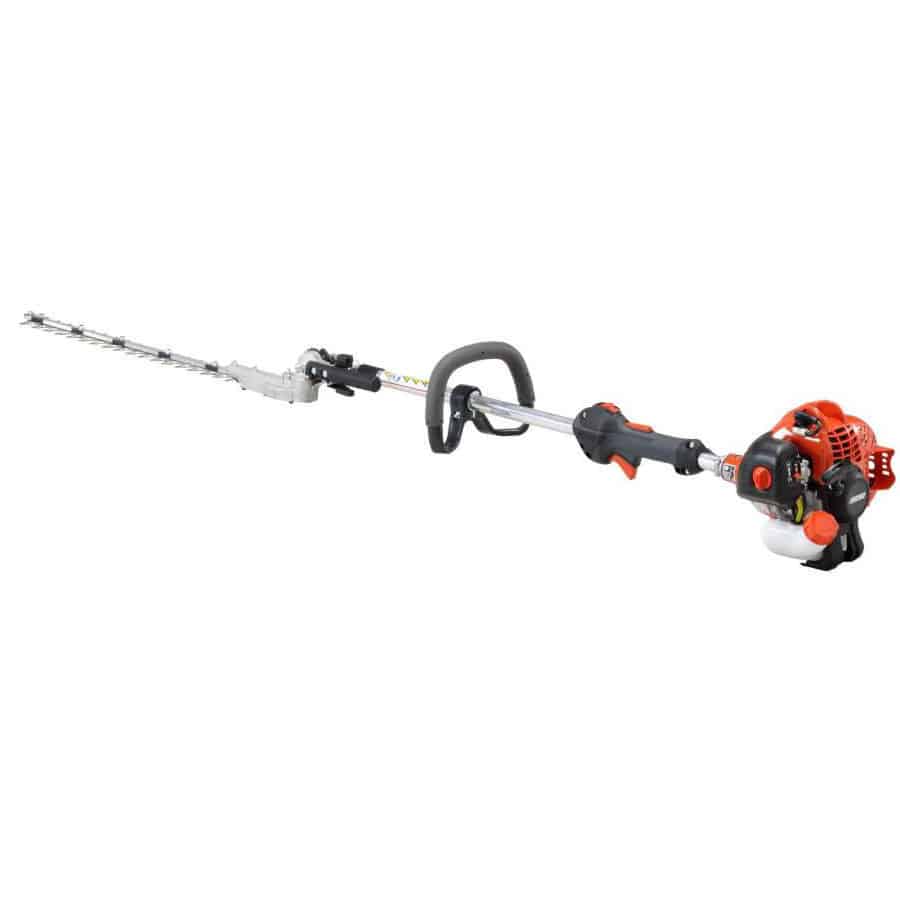

Echo HCAS-236ES LW Mid-Reach Hedge Trimmer


The Echo HCAS-236ES LW is an ultra lightweight, articulating, mid-reach hedge cutter with a lightweight gearcase, a light and durable cutter blade assembly and easy one-handed blade angle adjustment.

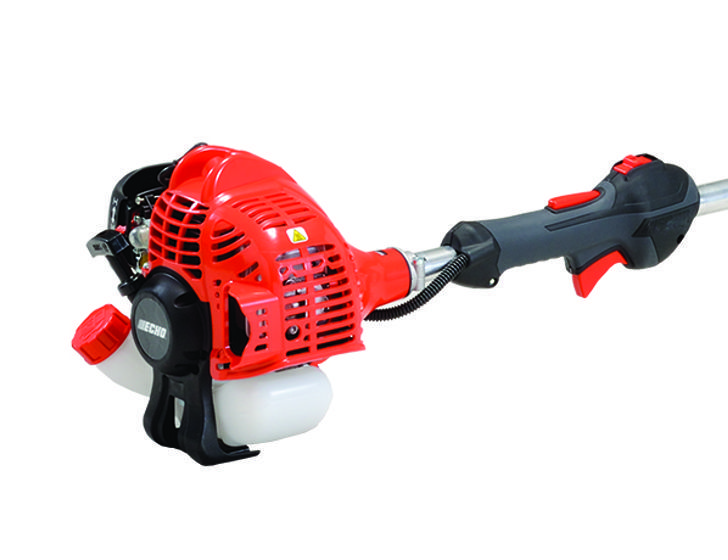

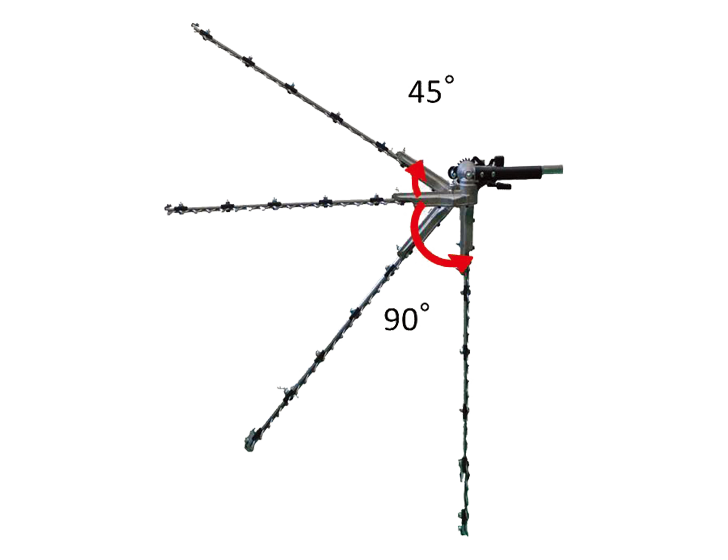

It features low vibration technology, a 21.2cc engine and Easy Start for easy starting. With a 519mm cutter that can be rotated through 90° it’s ideal for trimming tall and wide hedges

*Comes with free 150ml Echo 2/stroke oil included


Product Details.

Engine displacement (cm³) 21.2
Output (kw) 0.7
Output (ps) 1.0
Dry Weight 5.9
Overall Length (mm) 1749
Fuel tank capacity (l) 0.44
Fuel Consumption At Maximum Engine Power (L/h) 0.45
Start Assist System ES-start
Cutter Type Double
Cutting Length (mm) 519
Cutter Pitch (mm) 30
Cutter Clearance Adjustable
Stroke Rate (cuts/min) 3900
Vibration Front handle/Rear handle (m/s²) 4.5 / 7.3
Sound pressure level (dB(A)) 94.3
Sound power level (dB(A)) 106.2
CO² (g/kW・h) 1 1180

Additional information



Power Source

Petrol Powered
