Description
| Power/fuel type | Gasoline |
|---|---|
| Net power at preset rpm Energy | 9.9 kW |
| Motor/engine manufacturer | Husqvarna |
| Engine name | HV 586AE |
| Cylinder displacement | 635 cm³ |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure |
| Oil filter | Yes |
|
Exhaust emissions (CO2 EU V)
|
830 g/kWh |
| Battery | |
| Battery type | Lead-Acid |
| Battery pack weight | 7.2 kg |
| Battery manufacturer | Global |
| Cutting deck | |
| Uncut circle | 30 cm |
| Cutting width, min | 94 cm |
| Cutting width, max | 94 cm |
| Cutting height min | 25 mm |
| Cutting height max | 75 mm |
| Blade engagement | Automatic |
| Dimensions | |
| Tyre dimensions, front | 170/60-8 |
| Tyre dimensions, rear | 170/60-8 |
| Wheelbase | 88.7 cm |
| Ground clearance | 105 mm |
| Base machine, length | 223 cm |
| Base machine, width | 100 cm |
| Base machine, height | 107 cm |
|
Gross weight towed
|
110 kg |
| Drive system | |
| Transmission type | Hydrostatic |

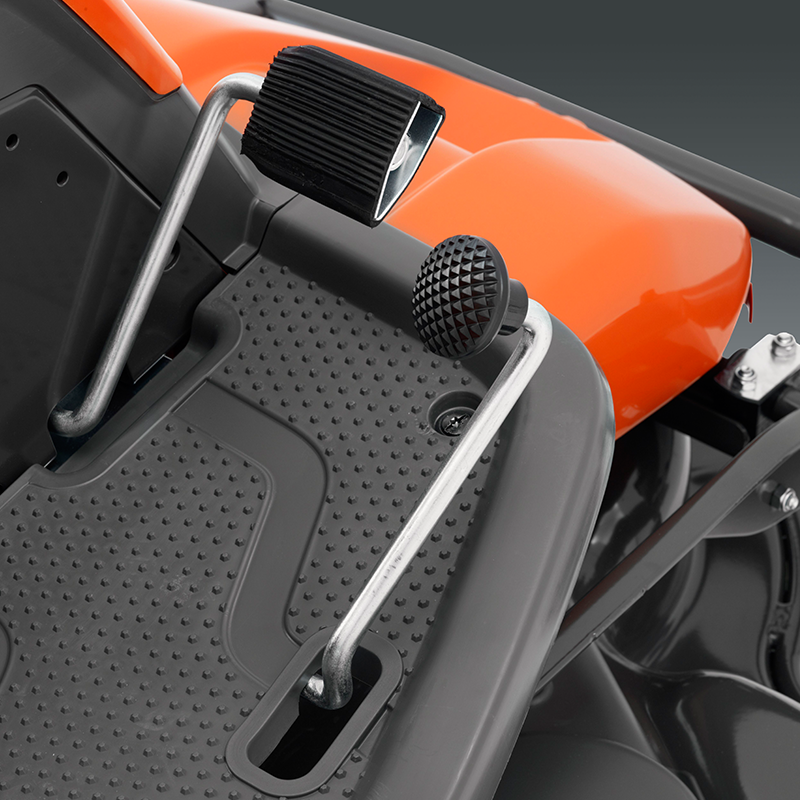

| Drive method | Dual pedal-operation |
| Speed forward max | 9.5 km/h |
| Equipment | |
| Seat suspension | Yes |
| Hour meter type | Digital |
| Seat material | PU |
| Seat back height | Medium |
| Foldable seat | Yes |
| Steering wheel type | Comfort |
| Parking brake, type | Disc |
| Vibration | |
| Vibration level steering wheel | 2.5 m/s² |
| Vibration level seat | 0.7 m/s² |
| Sound and Noise | |
| Sound pressure level at operators ear | 83 dB(A) |
| Sound power level, guaranteed (LWA) | 98 dB(A) |
| Sound power level, measured | 97 dB(A) |
