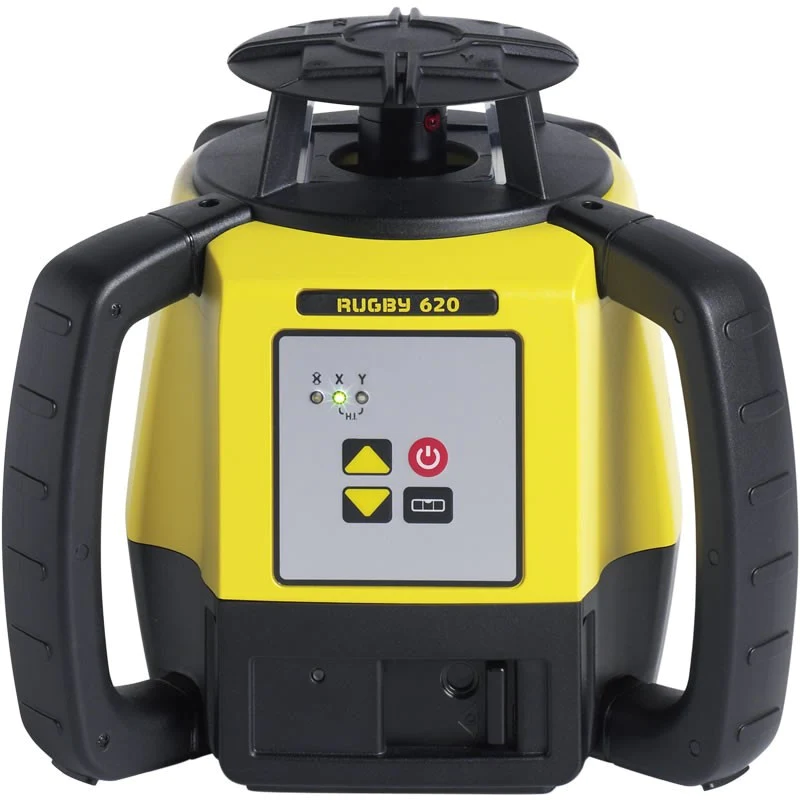

Leica Rugby 620 Site Laser Level Kit


Horizontal laser laser with manual grade capability

Increase your productivity in leveling applications with the Leica Rugby 620 construction laser. Designed for general contractors who mainly perform formwork and concrete applications, the Rugby 620 rotating laser level offers a professional but simple leveling solution with an outstanding price-to-quality ratio. Forget about costly errors, rework or downtime thanks to the fully-automatic operation with the Leica Rod Eye receivers. Concrete pouring, formwork leveling, setting foundations, and footings have never been more efficient.

The professional Rugby 620 laser level offers contractors application flexibility, allowing them to perform single slope applications using manual grade control. Rugby 620 is a perfect laser tool for those contractors who occasionally need to do simple slope tasks like driveways, landscaping, and parking areas.

  • Self-levelling horizontal & manual slope in one axis
  • Laser type – 635nm (red)
  • Accuracy ± 2.2mm at 30m (± 3/32″ at 100ft)
  • Rotation – 10 rps
  • maximum range with RodEye160 1,100 m (3,600 ft)

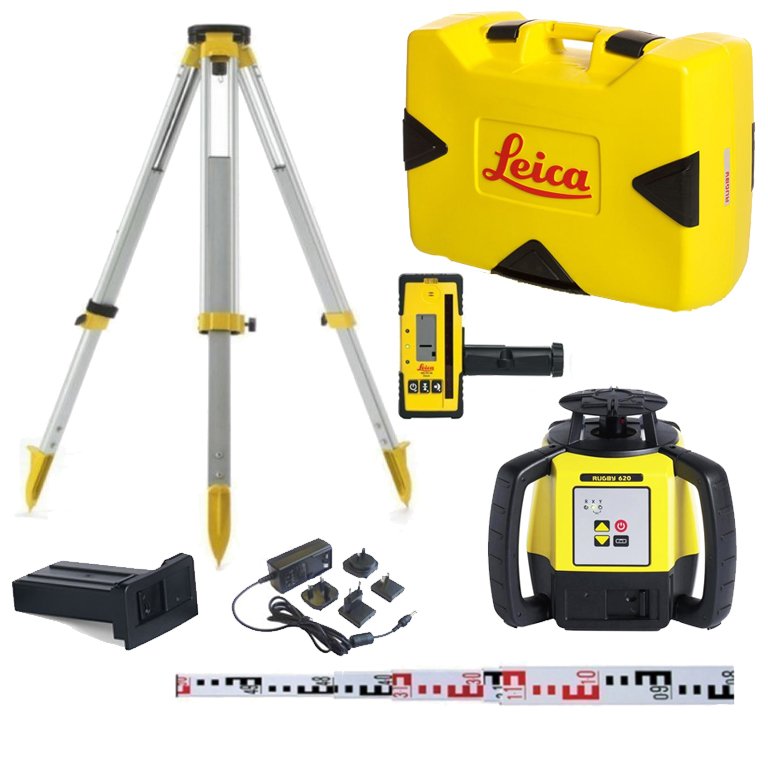

Kit Includes:

  • Rugby 620 and Carrying Case
  • Rod Eye 120 Receiver
  • Leica A600 Li-ion
  • Leica A100 AC Charger
  • Carry Case
  • Aluminium Staff
  • Tripod
Category: Brand:


Functionality Self-levelling horizontal & manual slope in one axis
Laser Class Class 2
Laser Type 635nm (visible)
Rotation RPS 10
Range (Diameter) Basic 600M

RE160 1100M

Hours Operation Li-Ion batt. | 40+
Alkaline batt box | 60+
Environmental Specifications Working temperature range | -10 C to +50 C

Additional information

Power Source

Battery Powered
