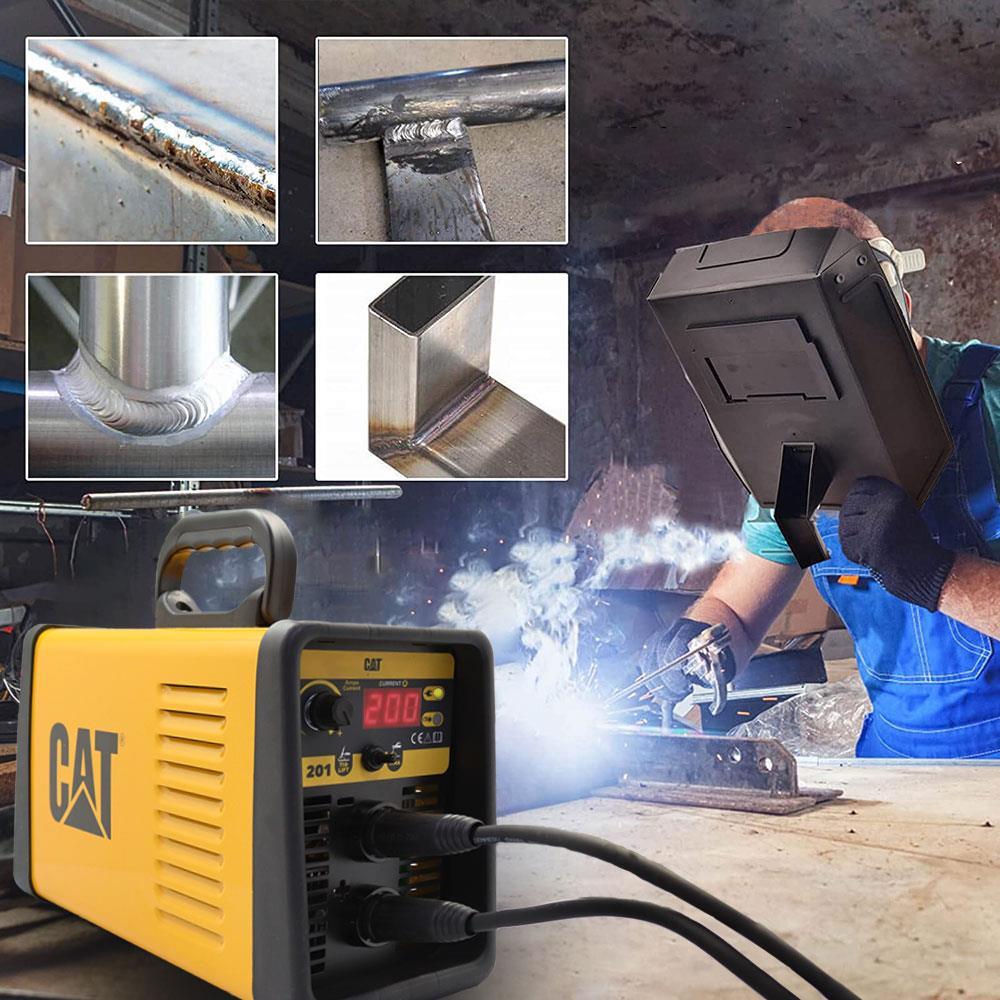

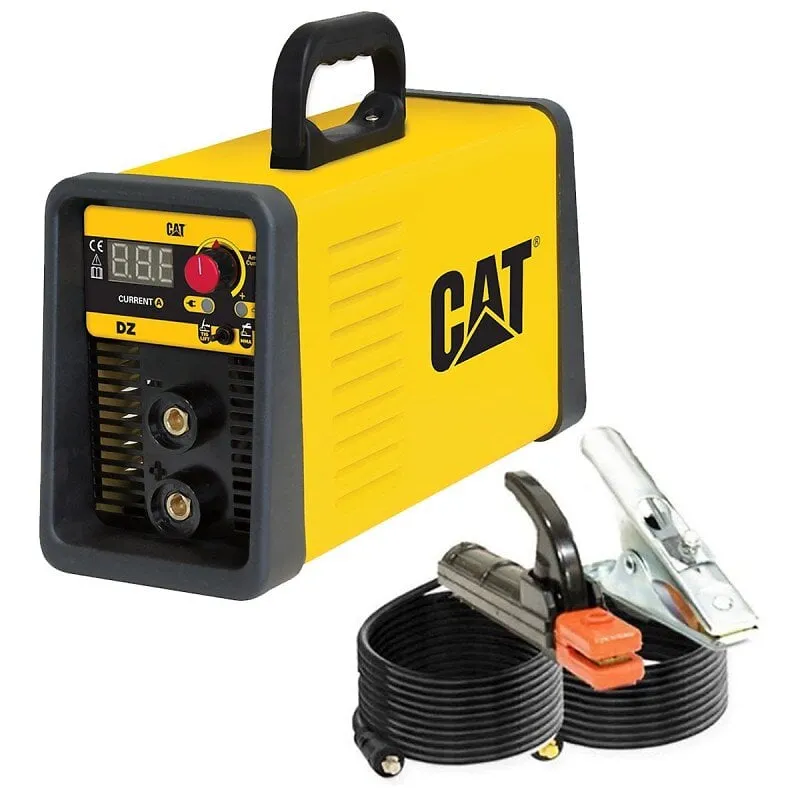

CAT 200amp Inverter Welder 220v


The CAT DZ201 MMA and TIG welding machine offers unparalleled welding characteristics that meet the requirements of the world-renowned brand. Its INVERTER technology with IGBT control meets specifications intended for demanding professionals. It offers an exceptional duty cycle of 20% at 200A, which gives it continuous welding for rods from 1.6 to 5 mm. This welding machine has 3 essential functions for quality work:

Made In Italy

– Arc force: allows to obtain a more stable arc.
– Hot start: makes it easier to strike the electric arc.
– Anti-stick: automatically switches off the welding generator in the event of an electrode sticking to the material to be welded.

Equipped with temperature sensors, digital display on LCD screen on the front panel, variable amperage control with digital meter for simultaneous display of the welding current. This welding machine welds all rods from Ø 1.6 to 5.0 mm, rutile steel, stainless steel, cast iron, cellulose (6013 – 308 – 7018 – A5.15). low thicknesses with perfect finishes and guaranteed sealing. Connects with a standard TIG LIFT torch with DINSE 25 connection (not supplied).

Categories: , Brand:


  • Compatible with 10 kW generating sets
  • Single-phase 230 V Duty cycle
  • 40° to standard: 20% / 200 A
  • Welding current 15-200 A
  • Absorbed power ARC 6.3 KW – TIG 4.7 KW
  • Effective current: ARC 16A / TIG 12.2 A
  • Current nominal input: ARC 35.8 A / TIG 27.2 A. No-load
  • voltage V0: ARC 70 V – TIG 14V
  • Soda rods diameter: 1.6 – 5 mm
  • Electrode type: 6013 – 308 – 7018 – A5.15
  • Insulation class: H Station
  • dimensions 19.5 x 13.5 x 36.5 cm
  • Weight 5.2 kg
